MF610

SIngle-Phase BLDC Motor Controller

  • Single-phase BLDC motor with hall IC interface 

  • PWM or voltage control input 

  • FG/RD/ALM/RALN/RXX/RRXX output 

  • Close loop or/and open loop control 

  • Current limit and over-current protection 

  • Soft-start, lock-protect and auto-restart 

  • System protection - Low-voltage detection with reset - Illegal opcode detection with reset 

  • MTP Programming - Support 6-wire factory programming mode - Support 4-wire in-system programming mode 

  • DC Fan Applications - Operating voltage range: 3.5V~6V - Operating temperature range: -40°C~105°C 

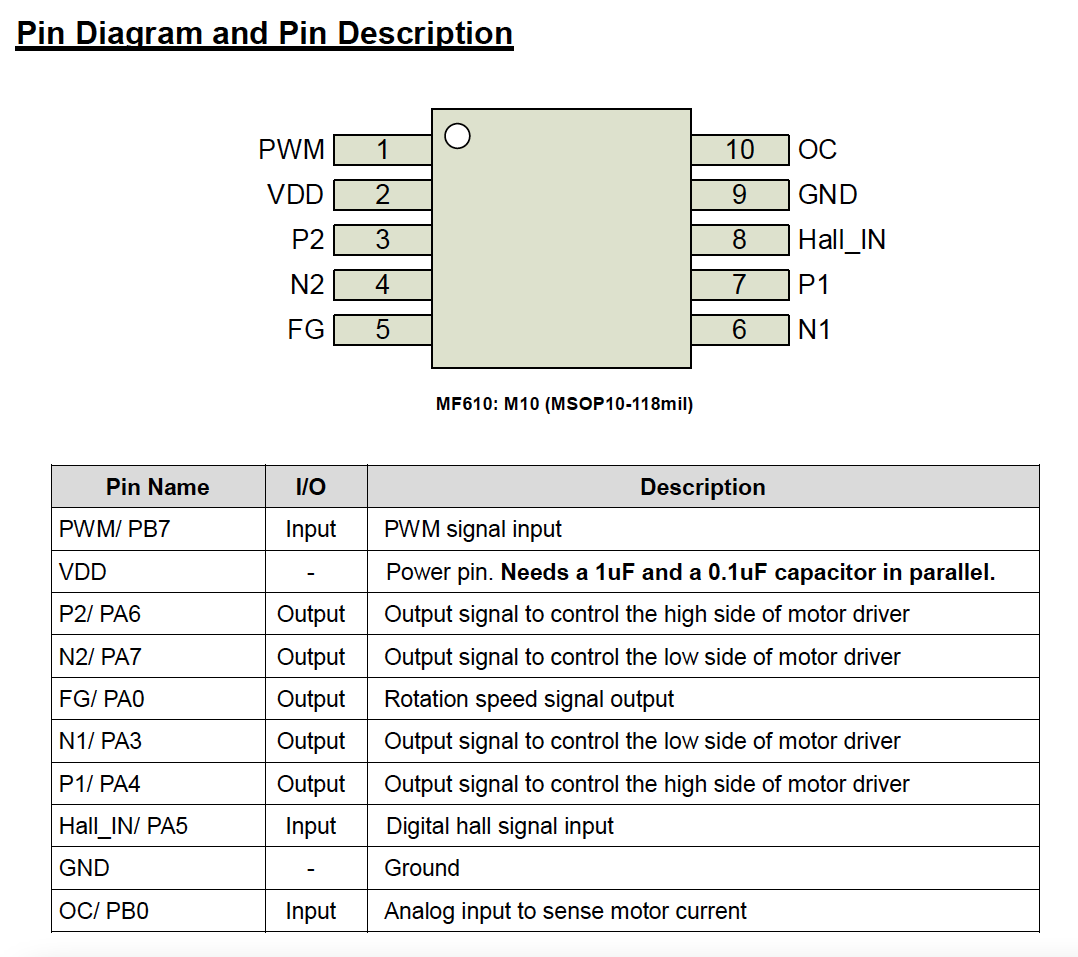

  • Package Information - MF610-M10: MSOP10 (118mil)
